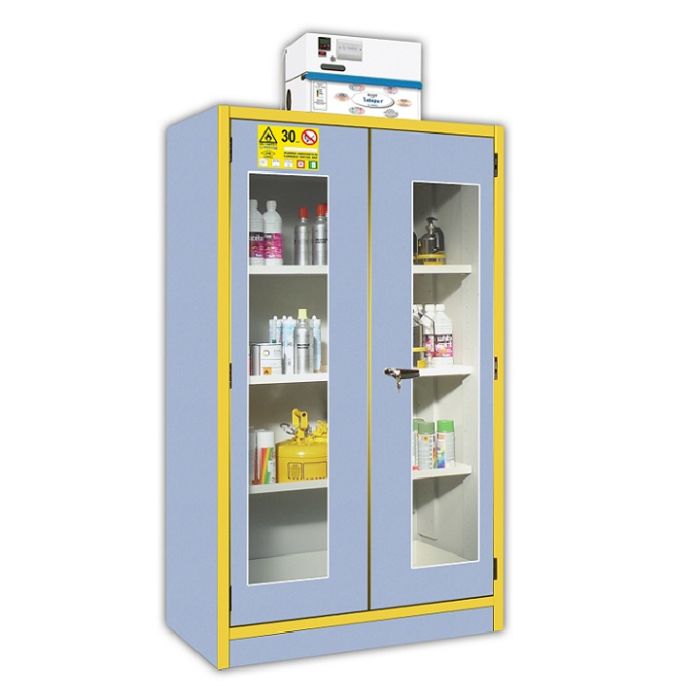

RANGE 3030X - Filtering ventilation secure 30mn cabinet with 2 glazed door
SKU
FUR50522E
- Dimension (H x W x D) (mm): 2210 x 1115 x 550
- Packing dimension (H x W x D) (mm): 2450 x 1200 x 800
Sign in or request an account to see prices.
Product description
| Advantages | |
|---|---|
 | 30-minute fire resistant and made in France |
 | EN 14470-1 and FM 6050 compliant |
 | Storage of flammables |
But also . . .

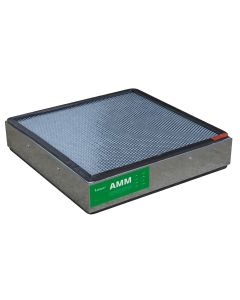

- Active coal filters adsorption capacity and filtration system certified NF X 15-211
- Available in 2 models : glass doors or full doors
- Front control window to see immediately the filter
- Active coal filter tested to the standard NF X 15-211
- Stop 99,97% of the particles with a diameter bigger than 0.3 µm
- Easy replacement of the active coal filter
- Easy and aesthetic installation
- Normalized labelling provided with the equipment
- Pedestal area under-driveable by a forklift by removing panel
- No modification of building's structure required
- Lighting control allowing to survey the proper working of the fan
- Tested and approved according to FM 6050
- Fan in compliance with CE specifications
Technical specification
| Model | FUR50522E |
|---|---|
| Compliance | EN 14470-1 FM 6050, CE, NF X 15-211 |
| Cabinet materials | Melamine wood structure |
| Doors color | Glass |
| Number of doors | 2 |
| Doors type | swing doors |
| Hinges | right & left |
| Door closure | self-closing |
| Openings diameter (mm) | 100 |
| Number of compartments | 2 |
| Shelves | 6 |
| Containment sump | 2 |
| Retention capacity (L) | 40 |
| External dimensions HxWxD (mm) | 2210 x 1115 x 550 |
| Internal dimensions HxWxD (mm) | (2x) 1581 x 490 x 419 |
| Shipping dimensions HxWxD (mm) | 2410 x 1200 x 800 |
| Load capacity | 30 |
| Storage capacity (L) | 240 |
| Weight (kg) | 247 |
| HS Code | 94036000 |
