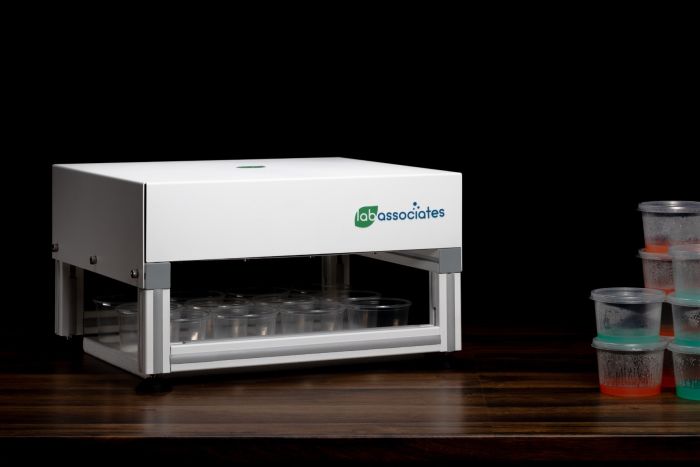

6- and 12-nozzle media dispenser for culture vessels
SKU
EQM-12ND4CV
The 6- and 12-nozzle sterile media dispenser has been developed for plant science laboratories to significantly reduce their media dispensing time.
- Reduce manual labor time
- Reduce dispensing errors
- Produce more media batches per day
- For sterile culture vessels
- To use with Lab Associates media preparators
Sign in or request an account to see prices.
Product description
Developed for plant science laboratories to significantly reduce media dispensing time
This system reduces manual labor time, dispensing errors, and allows you to run more media batches per day with your Lab Associates media preparator.
You only need to put one tray with empty vessels under the nozzle, push the foot pedal, touch button or signal the optical eye, and the media is dispensed into the vessels.
Technical specifications
- Dispensing media in 6 or 12 culture vessels at the same time
- Controlled by foot pedal or optical eye
- Dispensing time of ca. 4 seconds for ca. 100ml per vessel
- Controlled/changed via the control panel of the media preparator
- Automatic steam sterilization of dispensing system per media batch
- Controlled/changed via the control panel of the media preparator
- 110/230 VAC — 2 Amp
Technical requirements
- Lab Associates media preparator
- Air compressor: 125 L/min, max pressure 8 bar, oil-free
Customization options :
- Quantity of dispensing nozzles
- Position of dispensing nozzles
- Dimension of system based on your vessel trays and vessel dimensions
- Automation option with conveyor belt
