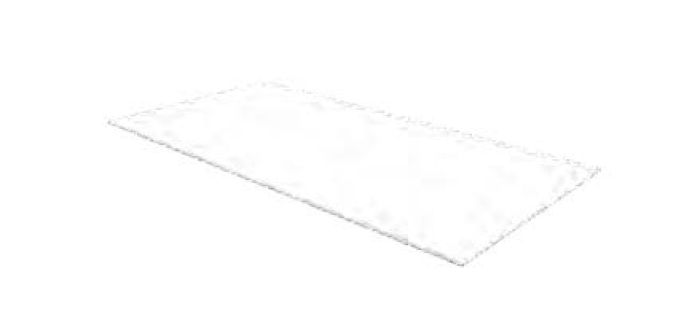

BLP-PV-FS sunlight assimilation lighting
SKU
EQM-BLPPVFS
Whether you cultivate leafy greens, vibrant flowers, or any other light-dependent crop, this LED assimilation panel is tailored to meet your needs. With dimensions that suit Danish trolleys and multi-level rack systems, it adapts seamlessly to various cultivation setups.
Sign in or request an account to see prices.
Product description
General information
- Sunlight spectral LED assimilation panel (380 - 780nm)
- Light temperature ± 2700K or ±5400K
- Beam angle 120º to 160º
- PPFD variables ±10-180μmol (30 cm, 100W)
- Lifespan of approximately 80,000 operating hours
- Mounting with frames or brackets
- Very suitable for practically any crop that has its optimal growth curve under sunlight
- Size very suitable for use in Danish carts, multi-layer rack systems
Applications
Multi-layer growth, Danish carts, tissue culture cultivation, propagation, young plants
Technical information
- Switchable or dimmable using 0 - 10V control
- Power output of 100W
- Dimensions: 600 x 1,200 mm
- Height: 40 mm
- Front-side fixture rating IP54
- Back-side fixture rating IP44
- Adjustable through external (brand-independent) control systems
| Electro-technical data |
External driver | Dimmable driver |
|---|---|---|
| Power supply | 200-240VAC, cable appr. 50 cm, 3-wires 1.5 mm2 | |
| Power (±10%) | 80W | |
| Mains frequency | 50-60Hz | |
| LED driver | Wire form panel till coupling appr. 220 cm, from coupling till driver appr. 160 cm | 1-10V, dimwire appr. 75 cm |
| Max interconnection of fixtures | Depends on driver used | |
| Operating temperature range | +10⁰C to +40⁰C | |
| Mechanical impact protection level | IK04 | |
| Dust- and waterproof level | IP54 (Front panel), IP44(Back panel) | |
| Power factor | ≥ 0.9 | |
| Total harmonic distortion | ≤ 15% | |
| Protection class | Class I | |
| LED type | Sunlight V2 | |
| Lumen efficiency | ≥ 125 lm/W | |
| Photo-biological safety, NEN-EN-IEC62471 | Class 0 | |
