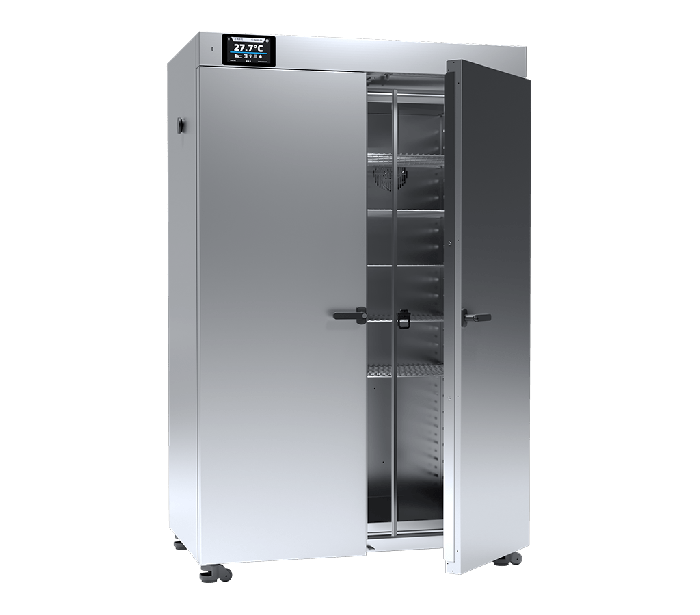

CLW 1000 - Laboratory incubator with forced air convection
Applications
- Incubation of samples for microbiological determinations
- Analysis of thermal resistance of samples subjected to higher temperatures
- Antibodies tests
- Bacteria tests
- Crystallization observations
- Cultivation of thermophilic microorganisms
- Pharma stability tests
- Food industry denaturalizing tests
Laboratory incubators are used for incubating samples in stable temperature conditions - regardless of the ambient temperature (the maximum range to 100°C).
Laboratory incubators are devices equipped only with a heater system (no cooling system). These devices maintain a constant temperature from 5 °C above the ambient temperature to a maximum of 100 °C. Thus, these devices will allow proper testing under specific temperature conditions.
CL laboratory incubators are available with double door (external solid, internal glass). Optionally, the external door can be fitted with a vision window to allow observation of samples. In order to secure the cartridge, all doors are locked. The housing can be powder coated or made of structural stainless steel (linen). POL-EKO-APARATURA laboratory incubators are equipped with LAN port and USB port for efficient data transfer to external media. Laboratory incubators are distinguished by a microprocessor-based, large colour display available in Smart and Smart PRO options. Our offer includes incubators with natural or forced air circulation.
Models and features
| Model | Interior | Exterior | Temperature protection | Controller |
|---|---|---|---|---|
| Standard | Acid-proof stainless steel to DIN 1.4301 | Powder coated sheet | Class 2.0 to DIN 12880 | Smart |
| IG | Stainless steel linen finish | Class 2.0 to DIN 12880 | Smart | |
| Standard | Acid-proof stainless steel to DIN 1.4301 | Powder coated sheet | Class 3.1 to DIN 12880 | Smart Pro |
| IG | Stainless steel linen finish | Class 3.1 to DIN 12880 | Smart Pro |
Technical data
| Technical data | |
|---|---|
| Air convection | Forced |
| Chamber capacity (L) | 1,005 |
| Working capacity (L) | 1,005 |
| Controller | Microprocessor PID |
| Display | 4.3" full-color touchscreen or 7" full-color touchscreen (optional) |
| Temperature range [°C] | 5°C above ambient temperature … +100°C |
| Temperature resolution every [°C] | 0.1 |
| Temperature fluctuation at 37°C [+/-°C]* | 0.2 |
| Temperature variation at 37°C [+/-°C]* | 1.0 |
| Over temperature protection | class 2.0 to DIN 12880 / class 3.1 (optional) |
| Door type | Double / Door with viewing window (optional) |
| Shelves (standard | max) | 6 | 22 |
| - reinforced shelf version (PW) [kg] | 100 |
| Max unit workload [Kg] | 300 |
| - reinforced unit version (PW) [kg] | 300 |
| Weight [Kg] | 319 |
| Power supply** | 230V 50-60Hz |
| Nominal power [W] | 1,900 |
| Warranty | 24 months |
All the above technical data refer to standard units (without optional accessories)
* - Fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. - T average min. ) / 2
** - Other power supplies on request
Accessories
| Shelf type | Max shelf workload [kg] |
|---|---|
| Inox wire shelf | 25 |
| Perforated stainless steel shelf | 25 |
| Reinforced stainless steel shelf | 100 |
