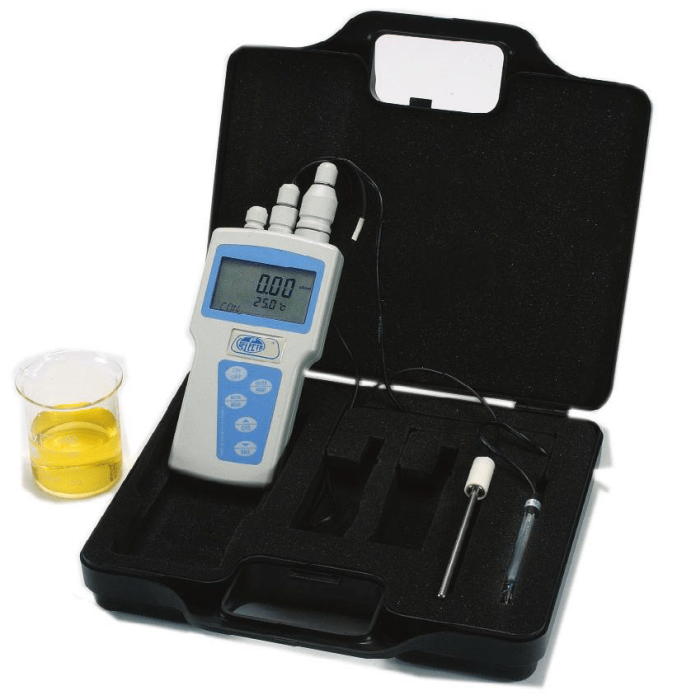

Conductivity meter "CD-2004" - JP Selecta

SKU

EQM66151S

Conductivity meter
IP65 protection against water and dust

Product description

Features

Measures conductivity, TDS and salinity.
Automatic range switching.
Automatic temperature compensation.
Calibration using standards for conductivity, TDS and salinity.
RS-232 output to connect a printer or a computer.
Direct printer connection, see part no. 4120113.
Temperature coefficient programable.
Conductivity cell constant adjustment.
Memory for 250 results.
Ambient protection IP65 (protection against water splashes from any direction).

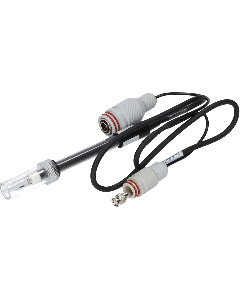

Includes Carry case, conductivity cell K= 1 and temperature sensor Rt-2252.

Technical specifications

Part No.	External dimension (HxWxD)(cm)	Power source	Weight
4120410	21 x 10 x 4.5	1.5 V batteries	0.5

Reading range: (automatic)

Conductivity	TDS
0.00 to 19.99 μS/cm	0.00 to 10.00 mg/L
20.0 to 199.9 μS/cm	10.00 to 100.0 mg/L
200 to 1999 μS/cm	100.0 to 1000 mg/L
2.00 to 19.99 mS/cm	1.000 to 10.00 g/L
20 to 199.9 mS/cm	10.00 to 19.99 g/L
(Cell constant K=10)	(Cell constant K=5 or 10)

Salinity range: 0.00 to 8.00
Temperature range: 0.0 a 40.0 ^oC

Precision:

Conductivity: 1.5% base scale
Salinity: 0.20%
Temperature: 0.3 ^oC
