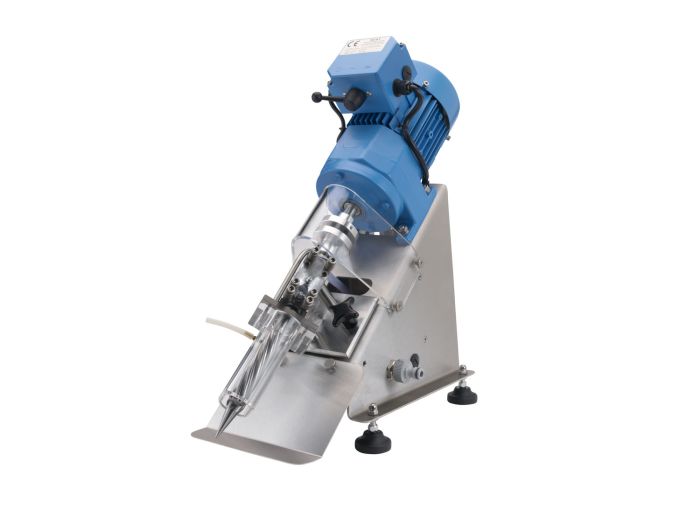

Germ juice press

The germ juice press is ideally suited for extracting juice from plant germs. The press is equipped with a corrugated roller system for solid material.

The two rolls are pressed against each other pulling in the material that is furnished to the centre of the rolls. The juice runs down from the slanted rolls, and may be collected on the tip of the lower roll. The drops are catched by means of a small plastic tube that must be held against the tip.

For safety reasons, the rolls are surrounded by a plexiglass part with inlet port that simultaneously serves as splash protection. Above the inlet port there is a shaft with stuff for pushing the germs into the roller system (This establishment distinguishes this press from the leaf and germ juice press).

A safety coupling between the rolls and the motor prevents damage of the device when using unsuitable materials.

At the end of the extraction process the rolls are cleaned with water by means of a special rinsing nozzle. Water flushing is controlled electronically and is activated by a push button at the side of the press stand.

The rinsing time may be adjusted by means of a control knob.
