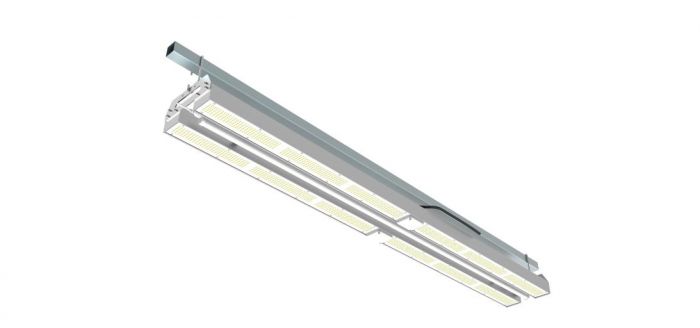

ILM-PG sunlight assimilation lighting
SKU
EQM-ILMPG
Full spectrum sunlight LED, generated from one single chip. Applicable for every crop that has the best growth curve under sunlight. Standard dimmable so light intensity can be adjusted to the needs of the crop. Optional with far-red.
Sign in or request an account to see prices.
Product description
General information
- Sunlight spectral LED assimilation lamp (380 - 780nm)
- Light temperature ± 2700K or ±5400K
- Beam angle 60º or 120º
- PPFD variables ±50-1000μmol (50 cm, 100-1200W)
- Lifespan of approximately 80,000 operating hours
- Mounting by means of brackets or pendants
- Cooling through natural convection
- Very suitable for practically any crop that grows under sunlight
Applications
Greenhouses, young plants, rearing, ornamental crops, vegetable and fruit crops, (medicinal) cannabis, climate control rooms
Technical information
- Switchable or dimmable by means of 0-10V control
- Power of 200 to 600W
- Modules can be installed as a duo or in length
- Module length of 180cm for optimal spread
- Tri-proof fixture: impactproof (IK10), dust & waterproof (IP66)
- Optionally expandable with separately controllable light unit
- Controllable via external (brand independent) control systems
| Electro-technical data |
External driver | Dimmable driver | ||
|---|---|---|---|---|
| Power supply | Meanwell 200 ~ 305VAC (1-phase) Inventronic 90 ~ 305VAC (1-phase) Inventronic 249 ~ 528VAC (2-phase) |
|||
| Power (±10%) | 200W (single bar) 300W (single bar) 400W (double bar) 600W (double bar) |
|||
| Mains frequency | 50-60Hz | |||
| LED driver | 0-10V dimmable and flicker-free PFC correction when dimming (PF 0.7 bij 60% dimming) |
|||
| Electrical connection | Meanwell equipped with 0.5m power cable 3x1.5 mm2 Inventronic EUD equipped with 2.5m connection cable with edge earth plug Inventronic ESD equipped with 0.5m power cable 3x1.5 mm2 with connector coupling Wieland RST20i3 green |
|||
| Max interconnection of fixtures per end group due to inrush current (without peak limiter) | 200W | Meanwell ELG-200-48B | 4 | 6 |
| 300W | Inventronic E(U/S)D600S12ADV) Inventronic E(U/S)D320S670DV) |
8 | 10 | |
| 400W | Meanwell ELG-200-48B | 2 | 3 | |
| 600W | Inventronic E(U/S)D600S12ADV) | 4 | 5 | |
| Operating temperature range | -40°C to +90°C | |||
| Mechanical impact protection level | IK10 | |||
| Dust- and waterproof level | IP66 | |||
| Power factor | ≥ 0.9 | |||
| Total harmonic distortion | ≤ 10% | |||
| Protection class | Class I | |||
| LED type | SEOUL Sunlike V2 (WICOP) | |||
| Lumen efficiency | ≥ 125 lm/W | |||
| Photo-biological safety, NEN-EN-IEC62471 | Class 1 | |||
