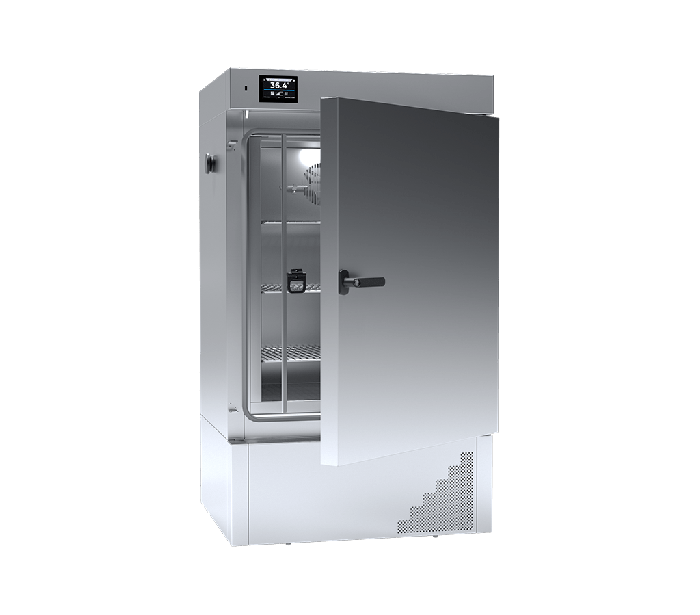

ILW 240 - Cooled incubator
SKU
EQM-ILW240
Applications
- Microbiological tests
- Plant growing, microorganisms breeding at precisely controlled environment
- BOD determination
- Incubation of samples at specified temperature
Sign in or request an account to see prices.
Product description
The IL cooled incubators are perfect for incubation of samples in a stable environment, regardless of ambient conditions, at temperatures from -10 up to +100°C.
Models and features
| Model | Interior | Exterior | Temperature protection | Controller |
|---|---|---|---|---|
| Standard | Acid-proof stainless steel to DIN 1.4301 | Powder coated sheet | Class 2.0 to DIN 12880 | Smart |
| IG | Stainless steel linen finish | Class 2.0 to DIN 12880 | Smart | |
| Standard | Acid-proof stainless steel to DIN 1.4301 | Powder coated sheet | Class 3.1 to DIN 12880 | Smart Pro |
| IG | Stainless steel linen finish | Class 3.1 to DIN 12880 | Smart Pro |
Technical data
| Technical data | |
|---|---|
| Air convection | Forced |
| Chamber capacity (L) | 245 |
| Working capacity (L) | 245 |
| Controller | Microprocessor PID |
| Display | 4.3" (Smart) or 7" full-color touchscreen (Smart Pro) |
| Temperature range [°C] | 0…+70 / -10…+70 (optional) or 0…+100 / -10…+100 (optional) |
| Temperature resolution every [°C] | 0.1 |
| Temperature fluctuation at 37°C [+/-°C]* | 0.2 |
| Temperature variation at 37°C [+/-°C]* | 0.3 |
| Over temperature protection | Class 1.0 to DIN 12880 / Class 2.0 or Class 3.3 (See above options) |
| Door type | Solid / glass or double (option) /3/ |
| Shelves (standard | max) | 3 | 10 |
| Max shelf workload [kg] /1/ | 25 |
| - reinforced shelf version (PW) [kg] /2/ | 100 |
| Max unit workload [Kg] | 90 |
| - reinforced unit version (PW) [kg] | 300 |
| Weight [Kg] | 140 |
| Power supply** | 230V 50-60Hz |
| Nominal power [W] | 900 | Refridgerant | R290 / GWP=3 |
| Warranty | 24 months |
All the above technical data refer to standard units (without optional accessories)
* - Fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. - T average min. ) / 2
** - Other power supplies on request
1 - On uniformly loaded surface
2 - Reinforced shelf
Accessories
| Shelf type | Max shelf workload [kg] |
|---|---|
| Inox wire shelf | 25 |
| Perforated stainless steel shelf | 25 |
| Reinforced stainless steel shelf | 50 |
