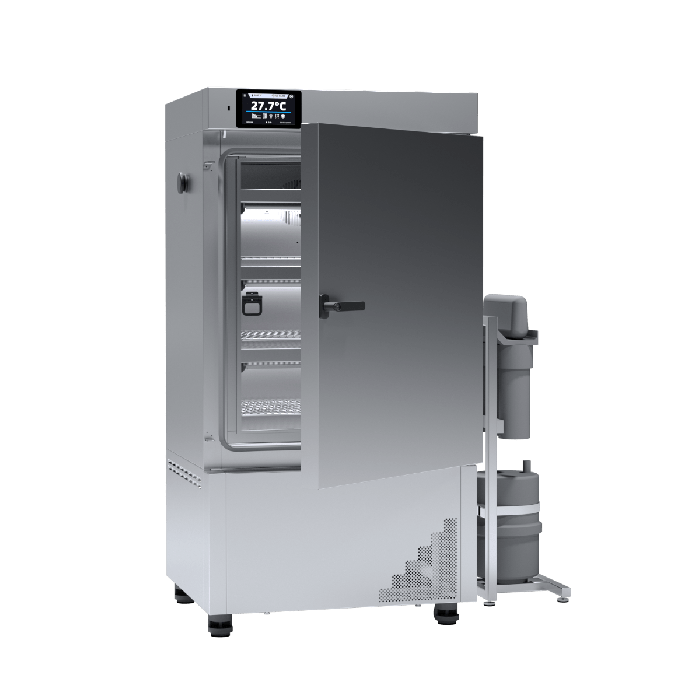

KK 240 - Climatic chamber with ultrasonic humidifier
Applications
- Plant growing and tissue culture
- Seeds germination
- Microorganisms breeding
- Photostability tests
- Any kind of research that requires a stable temperature and humidity environment (optionally light)
Climatic chambers with an ultrasonic humidifier are professional and reliable equipment to guarantee stable and precise conditions. They can be used for seed germination, fungus and plant growing or food tests. Perfect climatic conditions allow you to perform stability tests of pharmaceuticals and cosmetics, as well as packaging and electronics.
Climatic chambers equipped with phytotron system (lighting system) can control temperature and humidity, as well as light intensity to simulate day and night conditions. Standard light colour is 840 type and the tubes can be installed in the door, side walls or over-shelf panels. There are also special LED panels designed for plant growing (see below for light spectrum).
Models and features
| Model | Interior | Exterior | Temperature protection | Controller |
|---|---|---|---|---|
| Standard | Acid-proof stainless steel to DIN 1.4301 | Powder coated sheet | Class 3.3 | Smart PRO |
| IG | Stainless steel linen finish | Class 3.3 | Smart PRO |
Technical data
| Technical data | |
|---|---|
| Air convection | Forced |
| Chamber capacity (L) | 240 |
| Working capacity (L) | 240 |
| Controller | Microprocessor PID |
| Display | 7" full-color touchscreen |
| Temperature range [°C] | 0...+60 or +10...+50 (with light on) |
| Temperature resolution every [°C] | 0.1 |
| Temperature variation at 25°C and 60%rH [+/-°C]* | 2.0 |
| Over temperature protection | class 3.3 to DIN 12880 |
| Realive humidity range % | 30...90 |
| Humidity variation at 25°C and 60%rH [+/-°C]* | 5.0 |
| Humidity resolution (%) | 1.0 |
| Door type | Double (external solid, internal glass) / external glass (option) |
| Shelves (standard | max) | 3 | 10 |
| Max shelf workload [kg] /1/ | 10 |
| - Reinforced shelf version (PW) [kg] /2/ | 100 |
| Max unit workload [Kg] | 90 |
| Weight [Kg] | 170 |
| Power supply** | 230V 50-60Hz |
| Nominal power [W] | 1,550 |
| Refrigerant | R290 / GWP=3 |
All the above technical data refer to standard units (without optional accessories)
* - Fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. - T average min. ) / 2
** - Other power supplies on request
1 - On uniformly loaded surface
2 - Reinforced shelf
Growth light options
Available fluorescent light tubes:
- Standard type 840 for daylight simulation
- UV tubes for air sterilization and aging tests
Available LED modules:
- Red (hyper red) - max for wavelength 660 nm
- Deep blue - max for wavelength 445 nm
- Blue - max for wavelength 475 nm
- Deep (far) red - max for wavelength 730 nm
- White - colour temperature 4000 K
Light intensity of a panel:
- Light tube panel 840 ~280 μmol/m s
- Panel with white LED 4000 K ~800 μmol/m s
(25 cm distance from a shelf).
The dimmable over-shelf panels can be provided with several independently controlled colours of light. Other configurations on request.
Accessories
| Shelf type | Max shelf workload (Kg) |
|---|---|
| Inox wire shelf | 25 |
| Perforated stainless steel shelf | 25 |
| Reinforced stainless steel shelf | 100 |
