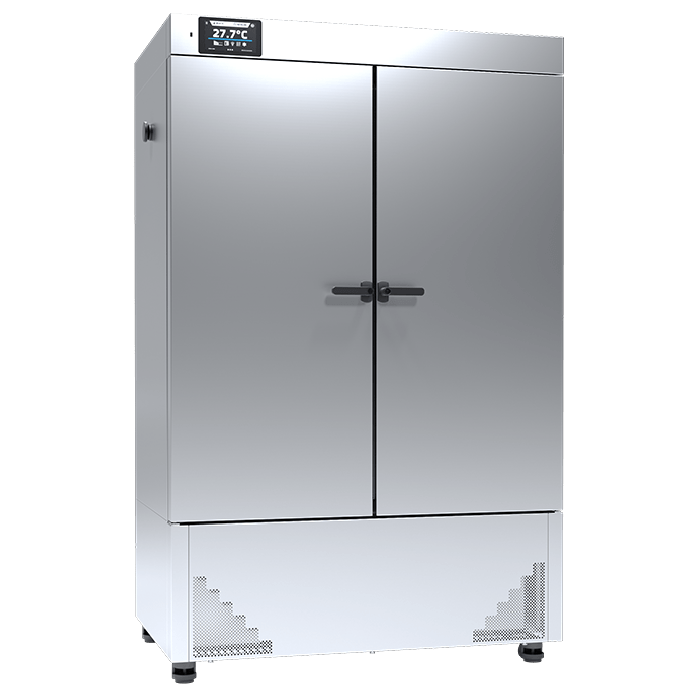

KKS 750 - Climatic chamber with steam humidifier
Applications
- Plant growing and tissue culture
- Seeds germination
- Microorganisms and insects breeding
- Any kind of research that requires a stable temperature and humidity environment
The KKS climatic chambers with a steam humidifier do not emit ultrasounds and therefore allow insects breeding (e.g. Drosophila melanogaster). Compared to the KK chambers, they feature an extended temperature and humidity range and can be used for tests of electronics, plastic or building materials.
The steam humidifier (steam generator) is a closed boiler that produces steam with higher pressure than atmospheric. The heat required to produce steam is obtained by a heater placed in a boiler. Much higher temperature and humidity ranges are used in more applications in comparison to KK units.
Models and features
| Model | Interior | Exterior | Temperature protection | Controller |
|---|---|---|---|---|
| Standard | Acid-proof stainless steel to DIN 1.4301 | Powder coated sheet | Class 3.3 | Smart PRO |
| IG | Stainless steel linen finish | Class 3.3 | Smart PRO |
Technical data
| Technical data | |
|---|---|
| Air convection | Forced |
| Chamber capacity (L) | 749 |
| Working capacity (L) | 749 |
| Controller | Microprocessor PID |
| Display | 7" full-color touchscreen |
| Temperature range [°C] | 0...+100 |
| Temperature resolution every [°C] | 0.1 |
| Temperature variation at 25°C and 60%rH [+/-°C]* | 2.0 |
| Over temperature protection | class 3.3 to DIN 12880 |
| Realive humidity range % | 30...90 |
| Humidity variation at 25°C and 60%rH [+/-°C]* | 5.0 |
| Humidity resolution (%) | 1.0 |
| Door type | Double (external solid, internal glass) / external glass (option) |
| Shelves (standard | max) | 5 | 16 |
| - Reinforced shelf version (PW) [kg] /1/ | 100 |
| Max unit workload [Kg] | 140 |
| Weight [Kg] | 275 |
| Power supply** | 230V 50-60Hz |
| Nominal power [W] | 4,250 |
| Refrigerant | R290 / GWP=3 |
All the above technical data refer to standard units (without optional accessories)
* - Fluctuation measured in the center of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. - T average min. ) / 2
** - Other power supplies on request
1 - Reinforced shelf
