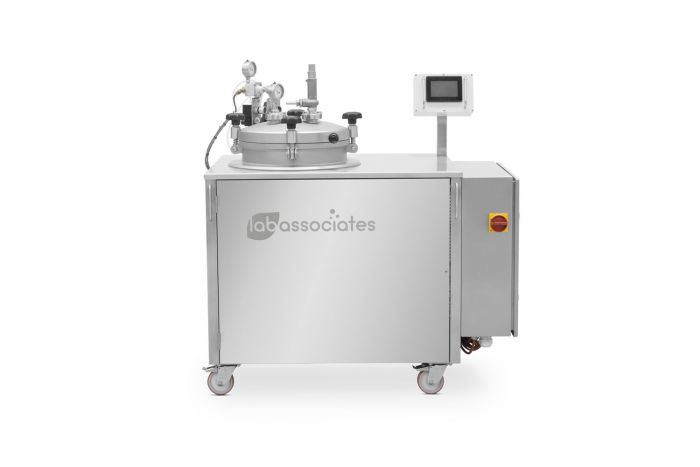

LAB22 media preparators - Lab Associates
SKU
EQM-22MP
- LAB22 media preparator.
- Maximum capacity: 50, 70, 100 and 150L
- Est. cycle time*: ca. 40-50 min
* Total sterilization process time (60 °C - 121°C - 60°C) incl. 15 min sterilization time at 121°C. Depends on max vessel capacity.
Sign in or request an account to see prices.
Product description
Features of the LAB22 media preparator:
- Available in 50, 70, 100 and 150 liters
- Extremely low maintenance and high durability
- Built-in steam generator
- Magnetic stirring mechanism (no mechanical seal)
- Stainless steel compressed air valves instead of magnetic valves
- All critical parts are made of stainless steel 316L and are completely sanitary
- Constant overpressure to prevent contamination on the inside
- Only high-quality certified parts are used
- The inside of the vessel is made of high polished stainless steel 316L (easy to clean)
- Built according to the European machine guidelines
- Available with required certificates (e.g. CE, PED)
Add-on options for the LAB22 model:
- Oil-free air compressor for compressed air (instead of using house air)
- Semi-automated dispensing unit with optical cell
- Semi-automated or automated dispensing system for tubes and conicals
- Well-dimensioned water systems (demi-water and/or reversed osmosis systems)
- No-break power supply/UPS
- Ethernet or Wi-Fi router for computer/tablet/smartphone interaction
- (This could be used for manually saving batch/process data)
Technical specifications
| Media preparator model | Certificates | Dimension +/- (LxDxH) (cm) |
Power requirements (Standard) |
|---|---|---|---|
| LAB22 media preparator - 50 liter | CE/PED | 155 x 80 x 135 | Supply: 3x 400v, 50 Hz Power: 27kW Fuse 39A |
| LAB22 media preparator - 70 liter | CE/PED | 155 x 80 x 135 | Supply: 3x 400v, 50 Hz Power: 27kW Fuse 39A |
| LAB22 media preparator - 100 liter | CE/PED | 190 x 80 x 135 | Supply: 3x 400v, 50 Hz Power: 45kW Fuse 65A |
| LAB22 media preparator - 150 liter | CE/PED | 200 x 80 x 135 | Supply: 3x 400v, 50 Hz Power: 45kW Fuse 65A |
Key differences between our media preparator models
| Model | Research | LAB22 | Premium |
|---|---|---|---|
| Volume | 20 and 30L | 50, 70, 100 and 150L | 50, 70, 100 and 150L |
| Heating process | Steam | ||
| Est. cycle time * | 30 min | ca. 40–50 min | ca. 30–40 min |
| Stirring mechanism | Advanced | Basic rectangular bar | Advanced |
| Error detection extended | Yes | ||
| Touch screen control panel | 7" HD capacitive glass | 10" HD capacitive glass | |
| Adjustable media programs | Yes | ||
| pH check | Yes | ||
| Graphical representation** | Yes | ||
| History overview*** | Yes | ||
| 4G / wifi connection | Optional | ||
| Ethernet connection | Optional | ||
| Administration access | Optional | ||
| UPS (no power break) for PLC / control panel (not process) | Optional | ||
* Total sterilization process time (60 °C - 121°C - 60°C) incl. 15 min sterilization time at 121°C. Depends on max vessel capacity.
** Graphical representation of temperature and pressures.
*** Overview of historical process data (up to 4 weeks)
