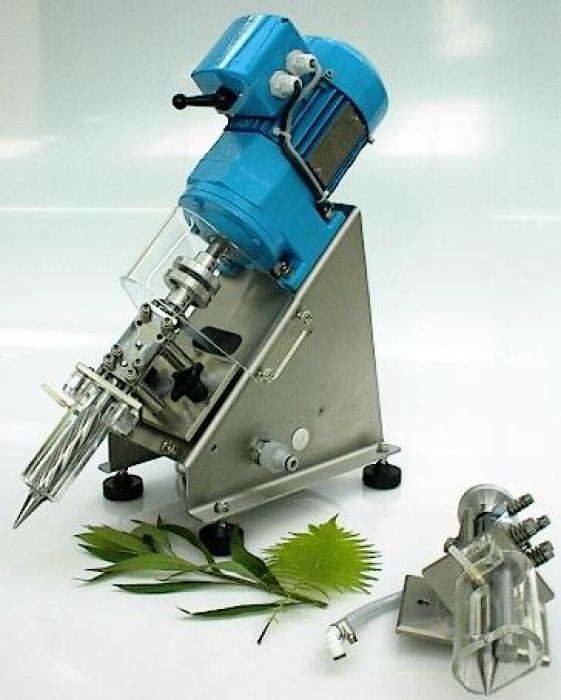

Leaf juice press with corrugated roller system

The leaf juice press is ideally suited for extracting juice from plant parts such as leaves, buds, and germs.

The two rolls are pressed against each other pulling in the leaves which are furnished to the center of the rolls. The juice runs down from the slanted rolls, and may be collected on the tip of the lower roll. The drops are caught by means of a small plastic tube that must be held against the tip.

For safety reasons, the rolls are surrounded by a plexiglass part with an inlet port that simultaneously serves as splash protection. smooth roller system for thin leaves. A safety coupling between the rolls and the motor prevents damaging the device when using unsuitable materials.

At the end of the extraction process, the rolls are cleaned with water by means of a special rinsing nozzle.

Water flushing is controlled electronically and is activated by a push-button at the side of the press stand.

The rinsing time may be adjusted by means of a control knob.
