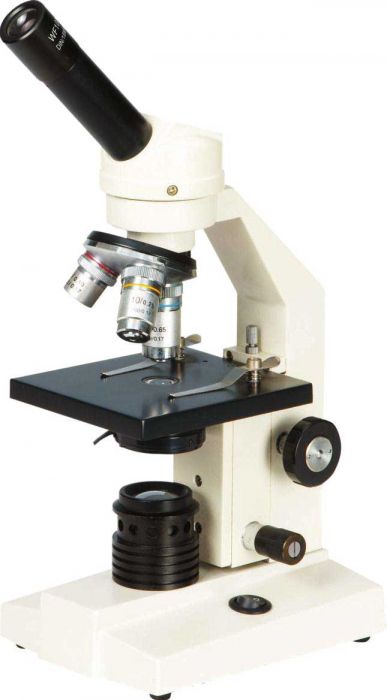

Microscope Monocular M-100 FL LED - JP Selecta

Features

Monocular head inclined angle 45° and rotatable through 360°.
Eyepiece, with wide field of view WF 10x (18 Ø) fixed in position using secure screw.
Objectives, parfocal DIN 45 mm achromatic brightfield of 4x (A.N. 0.10), 10x (A.N. 0.25)and 40x retractable (A.N. 0.65).
Total magnification: 40x, 100x and 400x.
Revolving triple objectives turret, rotation in either direction with a fixed axis stop locator.
Focus, vertical slip clutch, bilateral micrometer adjustment of 0.002 mm, separate macrometer with adjustable tension. Safety fixing screw for tension adjustment and end of focus limit stop.
Stage with spring clip slide holder of 110 x 126 mm.
Condenser, fixed lens and aperture (A.N. 0.65), with diaphragm disk of 5 apertures.
Illumination, transmitted light (diascopic), LED 0.5 W, with collimator lens and blue filter for chromatic corrections.
Robust construction, with power switch and illuminator built into the base.
Dimensions: 360 height x 130 width x 175 mm depth. Weight 2.8 kg.
Supplied complete with key to adjust the tension of the slip clutch and cover
