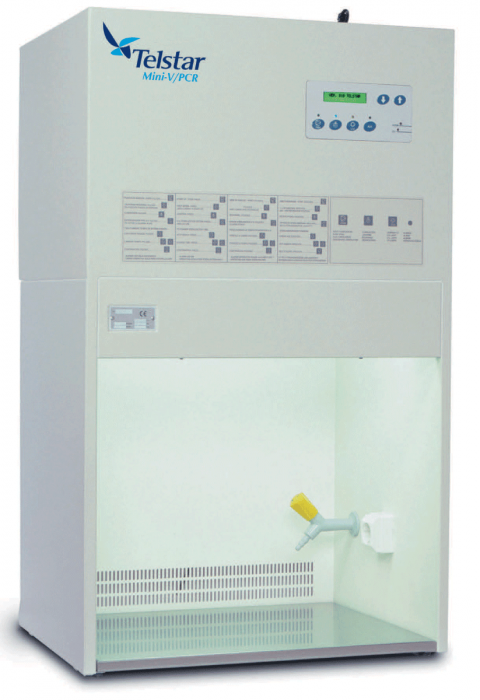

MINI V/PCR - laminar downflow work station

Mini-V/PCR, The ultra-compact vertical flow bench

A quiet blower delivers an ultra-clean laminar airflow over the working bench to protect manipulated products from dust, environment contamination and cross-contamination in the working area. Vertical benches are the ideal solution for the handling of non-hazardous biological samples. Moreover, Telstar Mini-V/PCR features a built-in UV light with timer.

• Benchtop cabinet with non-recirculated vertical laminar flow
• Compact dimensions compatible with all laboratory doors and dimensions
• Epoxy powder coated finish zinctec steel cabinet
• AISI 304 stainless steel workbench
• H14 HEPA filter easily accessible for replacement
• Prefilter 85% ASHRAE, in the inlet side
• Class 3 according to ISO 14644-1; Grade A Annex 1 GMP
• Very low power consumption, with EC blower and LED lighting: 66W

Technical data

As standard, Mini-V/PCR includes LED light, built-in UV-light with timer, electrical socket in the working area, stainless steel bench.
230V/50Hz (other voltage upon request).
External dimensions (W x D x H): 670 x 520 x 1,125 mm.
Internal dimensions (W x D x H): 630 x 500 x 570 mm.
Weight: 70 Kg.
Lighting > 750 lux / noise level: 56 dBA.

Options and accessories

• Gas or vacuum tap
• Pipette holder
• Front closure UV safe
• Filter clogging alarm
• Thermoanemometric airspeed sensor to monitor laminar flow speed and to provide filter clogging alarm
