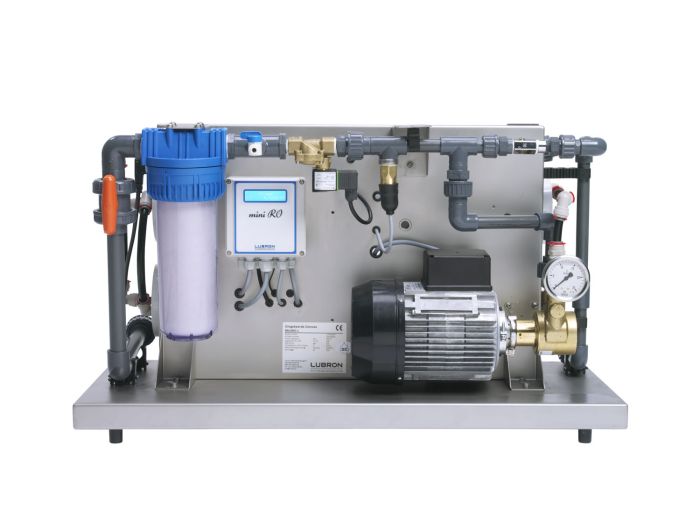

Mini-RO Reverse Osmosis system

SKU

EQM-ROLB

Reverse osmosis water system
Fully automatic operation
Flow capacities in the range of 45-400l/h

Product description

The MiniRO series system is a unique modern range of quality engineered reverse osmosis units designed for automatic operation. The series is based on the previous tried and trusted range of MiniRO units and contain similar features of the old range including 'water on demand' fully automatic operation, simple straight forward installation, water quality and unit status monitoring together with ultra quiet operation.

Features

Ultra-quiet operation - < 63dbA
Fully automatic with 'water on demand' sensing
Optimised for membrane and treated water cleanliness
Simple, straightforward installation with single electrical supply
Quality and status monitoring display
Flow capacities in the range of 45 - 400 l/h
Tried and trusted microprocessor control

Technical details

Model.	Capacity l/h @ 15^oC	Reject Capacity l/h	Feed Water Supply l/h	Recovery %	Working Pressure bar	Membrane Type	Membrane Quantity	Pump Type	Frame Size (WxDxH)(mm)
MiniRO-S	45	30	90	60	10.0	LOW4-2521	1	Procon 300	800 x 399 x 461
MiniRO-M	150	60	250	70	10.0	LOW4-4021XL	1	Procon 800	800 x 399 x 461
MiniRO-L	260	120	460	70	8.5	LOW4-4021XL	2	Procon 800	800 x 399 x 461
MiniRO-XL	400	180	700	70	9.0	LOW2-4040XR	2	Procon 1000	1,214 x 399 x 461

Common technical details

Microprocessor: OS3020
Retention Ratio: 96 - 99%
Allowable Water Temperature: 5 - 25 ^oC
Minimum Inlet Pressure: 2 bar
Electrical Connection: 230 V / 1 Ph / 50 Hz
Total Installed Power: 0.55 kW
Filter Type: 1 x 10 inch - 5 micron cartridge

Water Connections

Feed Water Inlet 25mm PVC or 3/4" male / female
Drain 16mm hose tail
Permeate Outlet 20mm PVC or 1/2" male / female
