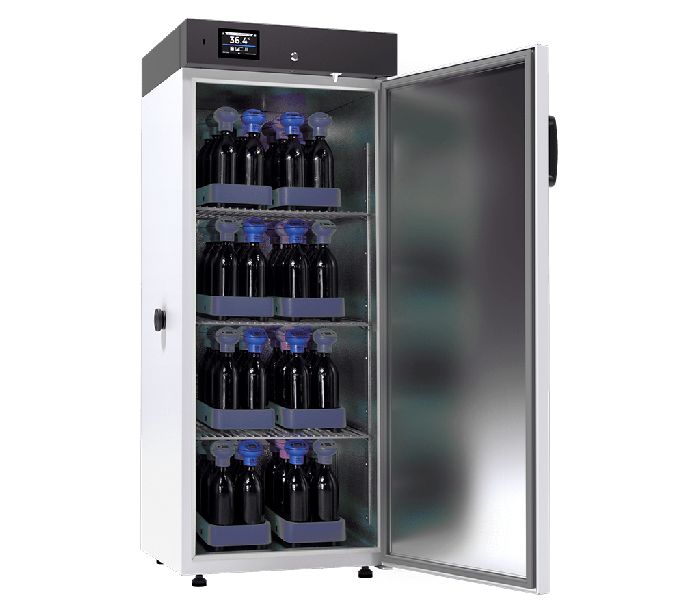

ST 5 BD - BOD incubator
SKU
EQM-ST5BD
Applications
- BOD determination
- Microbiological research
- Plant growing and microorganisms breeding at specified temperature
- Storage of liquids and samples for physicochemical analysis
Sign in or request an account to see prices.
Product description
The ST BD cooled incubators series for BOD) determination, is adapted to work with OxiTop® systems. ST BD series cabinets are equipped with internal power sockets 2, 3 or 4, depending on the model, and it is possible to place inside them respectively 2, 3 or 4 OxiTop® IS 12 sets by WTW.
Models and features
| Model | Interior | Exterior | Temperature protection | Controller |
|---|---|---|---|---|
| B (BASIC) | Aluminum | Powder coated sheet | Class 1.0 | Smart |
| C (COMFORT) | Stainless steel to DIN 1.4016 | Powder coated sheet | Class 1.0 | Smart |
| CS (COMFORT/S) | Stainless steel to DIN 1.4016 | Polished stainless steel | Class 1.0 | Smart |
| P (PREMIUM) | Stainless steel to DIN 1.4301 | Powder coated sheet | Class 2.0 | Smart |
| PS (PREMIUM/S) | Stainless steel to DIN 1.4301 | Polished stainless steel | Class 2.0 | Smart |
| P (PREMIUM) Smart PRO | Stainless steel to DIN 1.4301 | Powder coated sheet | Class 3.3 | Smart PRO |
| PS (PREMIUM/S) Smart PRO | Stainless steel to DIN 1.4301 | Polished stainless steel | Class 3.3 | Smart PRO |
Technical data
| Technical data | |
|---|---|
| Air convection | Forced |
| Chamber capacity (L) | 300 |
| Working capacity (L) | 243 |
| Controller | Microprocessor PID |
| Display | 4.3" (Smart) or 7" full-color touchscreen (Smart Pro) |
| Temperature range [°C] | +3…+40 |
| Temperature resolution every [°C] | 0.1 |
| Temperature accuracy at 20°C [+/-°C]* | +/-1 | Over temperature protection | Class 1.0 to DIN 12880 |
| Door type | Solid |
| Shelves (standard | max) | 4 |
| Max shelf workload [kg] | 10 |
| Max unit workload [kg] | 60 |
| Weight [Kg] | 75 |
| Power supply** | 230V 50-60Hz |
| Nominal power [W] | 350 |
| Refrigerant | R1234ze / GWP=1 |
| Warranty | 24 months |
All the above technical data refer to standard units (without optional accessories)
* - Fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. - T average min. ) / 2
** - Other power supplies on request
Accessories
| Shelf type | Max shelf workload [kg] |
|---|---|
| Inox wire shelf | 10 |
| Perforated stainless steel shelf | 10 |
| Reinforced stainless steel shelf | 20 |
