Tuber juice press

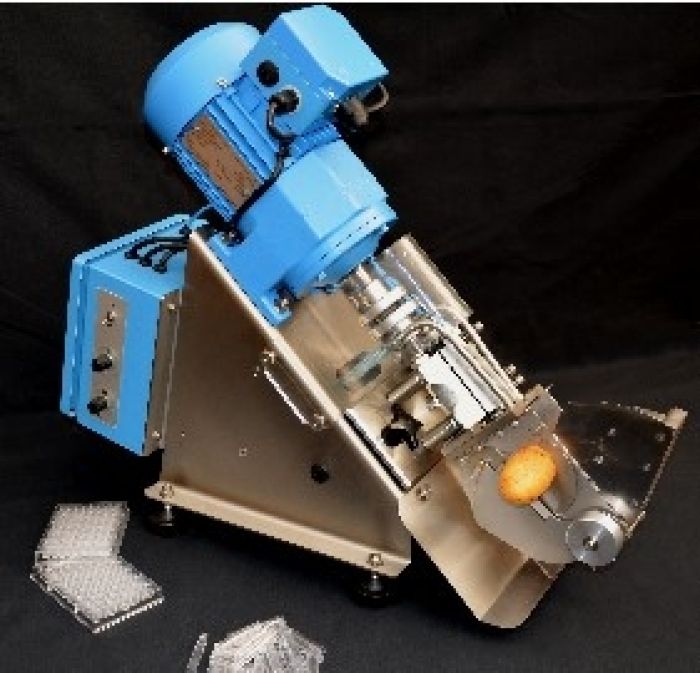

The tuber juice press is ideally suited for extracting juice from tubers (potatos with and without germs).

The press is equipped with a corrugated roller system for solid material and a precutting unit.

The tuber is fed from the side into the opening of the precutting head. Activating the foot switch starts the cutting process and the buffer unit. The truncated disc is pressed between the roller system.

The two rolls are pressed against each other pulling in the material that is furnished to the centre of the rolls. The juice runs down from the slanted rolls, and may be collected on the tip of the lower roll. The drops are catched by means of a small plastic tube that must be held against the tip.

A safety coupling between the rolls and the motor prevents damage of the device when using unsuitable materials.

At the end of the extraction process the rolls are cleaned with water by means of a special rinsing nozzle. Water flushing is controlled electronically and is activated by a push button at the side of the press stand. The rinsing time may be adjusted by means of a control knob.
