Easysoft STX2 water softeners
SKU
EQM-ESLB
- Water softener
- Ease of operation
- Compact built
- Output flow from 450 to 1,700 litres/h
Sign in or request an account to see prices.
Product description

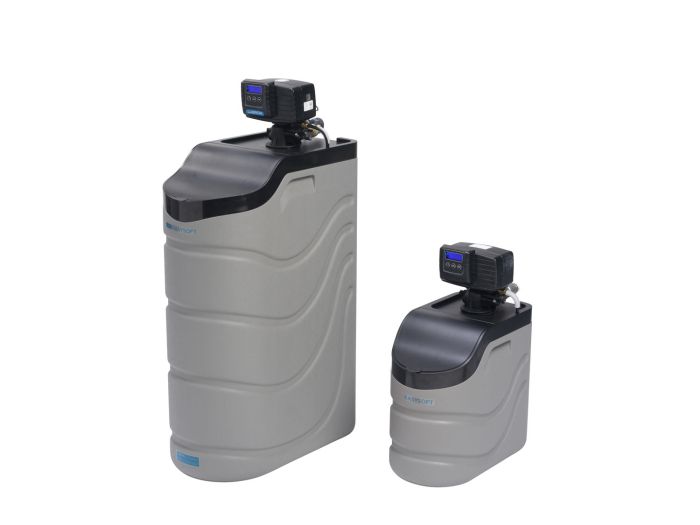

The EASYSOFT SXT2 water softeners house both the resin tank and the salt container in a small plastic cabinet. The softerner is controlled buy means of a resin tank-mounted patented control valve and includes an integrated valve to allow the required setting of residual hardness to be made. The regeneration of these water softeners can be performed on the basis of volume
Features
- Less cleaning work, greater comfort
- Extended life of electrical applicances
- Compact built
- Ease of operation
- Cost saving due to less appliance energy consumption and the use of less cleaning products.
- Rinse water economy through modern control technology
- Optional commisioning for optimum performance.
Technical details
| Model | Flow capacity | Nominal capacity at 1800ppm CACO3 | Salt consumption per regeneration | Pressure drop at flow capacity | Resin content | Brine compartment capacity | Dimension | ||
|---|---|---|---|---|---|---|---|---|---|
| L/h | Min (m3) | Max (m3) | Min (kg) | Max (kg) | bar | litres | kg | W x L x H (mm) | |
| EASYSOFT 450 SXT2 | 450 | 2.0 | 3.4 | 0.7 | 2.2 | 0.1 | 9 | 25 | 320 x 500 x 637 |
| EASYSOFT 750 SXT2 | 750 | 3.4 | 5.7 | 1.2 | 3.7 | 0.2 | 15 | 50 | 320 x 500 x 817 |
| EASYSOFT 1100 SXT2 | 1,100 | 5.0 | 8.4 | 1.8 | 5.5 | 0.2 | 22 | 40 | 320 x 500 x 817 |
| EASYSOFT 1700 SXT2 | 1,700 | 7.7 | 13.0 | 2.7 | 8.5 | 0.6 | 34 | 75 | 320 x 500 x 1,097 |
Water connections
- Water in: 1" BSP male
- Water out: 1" BSP male
Allowable water temperature
- 5 - 40 oC
Allowable water pressure
- Min: 2.0 bar
- Max: 7.0 bar
Electrical connections
- 230 V, 50 Hz
