Cross Flow Ecoplant
SKU
EQM-CFE
- Energy efficient (up to 70% less)
- Ergonomic design
- Low noise level (48dBA)
- Integrated flow guidance rail
- Customization & options
Sign in or request an account to see prices.
Product description

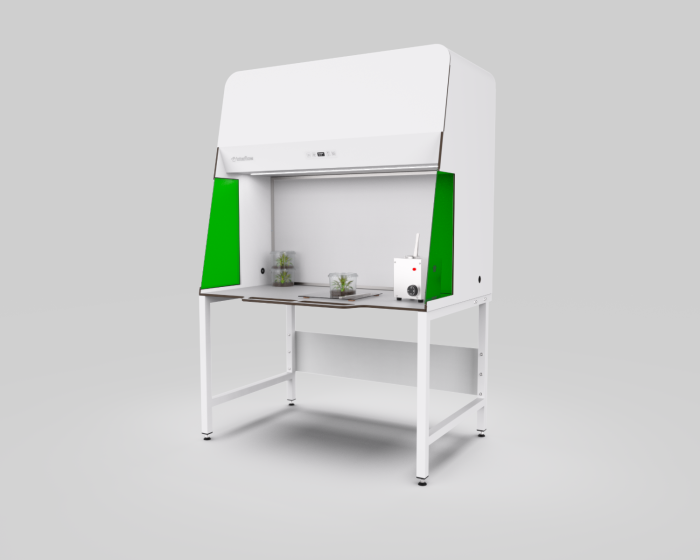

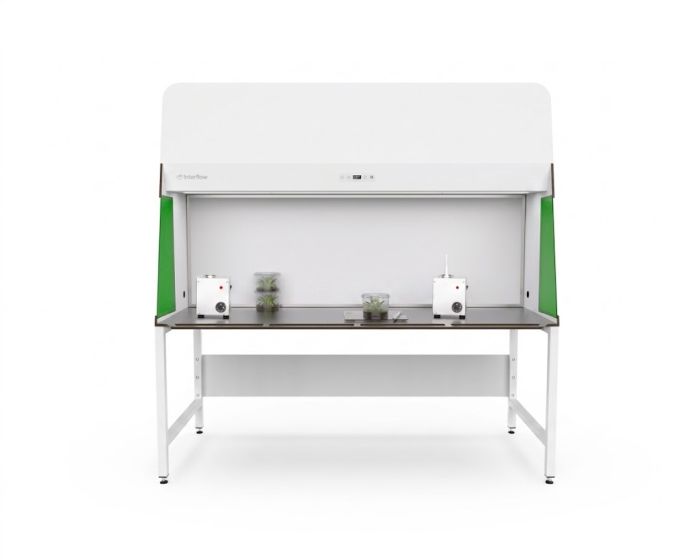

The 'Cross Flow Ecoplant' laminar air flow unit is an innovative solution developed specifically for applications in plant laboratories. Born from an intensive collaboration between Dutch market leaders Interflow and Lab Associates, this unit combines premium contamination control technology with practical cost efficiency, without unnecessary complexity.
By delivering a continuous, low-turbulence horizontal laminar airflow, the Ecoplant effectively eliminates airborne particles directly at the bench, providing a low-germ and low-dust working environment that protects your valuable plant tissue cultures and processes.
Energy efficiency & aerodynamics
- Up to 70% energy savings: Uses efficient EC fans and LED lighting to lower electricity consumption.
- Reduced turbulence: Designed to minimize the overall resistance of the internal airflow, ensuring maximum efficiency of the required energy.
Safe and clean
- Dual-stage filtration: Combines a G4 pre-filter for coarse dust with a high-end H14 HEPA filter to catch microscopic airborne particles.
- Fail-safe pressure design: Employs advanced pressure differentials to guarantee that the workspace remains sterile even during an unexpected filter malfunction.
- Maximum leak-tightness: Built with a fully hermetic seal to completely block outside contaminants from penetrating the inoculation area.
Ergonomics + add-ons
- Ultra-quiet operation: Functions at only 48 dBA through specialized sound-absorbing materials and vibration-free fan mounts.
- Intuitive day/night controls: Features a modern touchscreen panel designed to easily toggle airflow and light settings depending on laboratory shifts.
- Adjustable support stands: Available for both sitting and standing workflows, including an optional electrical height adjustment mechanism.
- Optional extras: Customize your unit with a visual malfunction alarm (LED turns red), built-in glass bead steriliser, or custom dimensions.
Compliance standards
- Worksurface certification: The clean workspace environment is fully compliant with international standards, meeting ISO 14644-1 requirements.
- GMP requirements: Designed to meet strict GMP guidelines, ensuring optimal product protection and performance in critical plant tissue culture processes.
Tecnical information
| Type | CF Ecoplant 61/91 | CF Ecoplant 61/122 | CF Ecoplant 61/183 | CF Ecoplant 91/244 |
| Cabinet material | HPL | HPL | HPL | HPL |
| Worktop material | Standard HPL Optional stainless steel 316 |
Standard HPL Optional stainless steel 316 |
Standard HPL Optional stainless steel 316 |
Standard HPL Optional stainless steel 316 |
| Workspace material | HPL-High resistance to chemicals. Easy to clean | HPL-High resistance to chemicals. Easy to clean | HPL-High resistance to chemicals. Easy to clean | HPL-High resistance to chemicals. Easy to clean |
| External body (W x D x H) incl. flow guidance | 946 x 934 x 1144 mm | 1250 x 934 x 1144 mm | 1860 x 934 x 1144 mm | 2500 x 934 x 1449 mm |
| Workspace (W x D x H) | 922 x 600 x 616 mm | 1226 x 600 x 616 mm | 1836 x 600 x 616 mm | 2476 x 600 x 921 mm |
| Fits through door (W) | 850 mm | 850 mm | 850 mm | 850 mm |
| Worktop height from floor (H) | 760/940 mm sitting/standing height |
760/940 mm sitting/standing height |
760/940 mm sitting/standing height |
760/940 mm sitting/standing height |
| Total height including frame (H) | 1904/2084 mm sitting/standing height |
1904/2084 mm sitting/standing height |
1904/2084 mm sitting/standing height |
2209/2389 mm sitting/standing height |
| Weight upper cabinet | 110 kg | 124 kg | 172 kg | 230 kg |
| Weight frame sitting height | 20 kg | 23 kg | 27 kg | 32 kg |
| Workspace one-piece | Yes | Yes | Yes | Yes |
| Side panels | Transparent panels (green) High-quality polycarbonate |
Transparent panels (green) High-quality polycarbonate |
Transparent panels (green) High-quality polycarbonate |
Transparent panels (green) High-quality polycarbonate |
| Full service access front/top side | Yes | Yes | Yes | Yes |
| Fan type | EC-fan Up to 70% energy savings |
EC-fan Up to 70% energy savings |
EC-fan Up to 70% energy savings |
EC-fan Up to 70% energy savings |
| Voltage | 230V/50Hz 110V/60Hz at request |
230V/50Hz 110V/60Hz at request |
230V/50Hz 110V/60Hz at request |
230V/50Hz 110V/60Hz at request |
| Circuit protection | 16 A | 16 A | 16 A | 16 A |
| Electricity consumption at 0.2 m/s flow | 0.40 A | 0.50 A | 0.67 A | 0.80 A |
| Power consumption at 0.2 m/s flow speed | 53 Watt p/h | 53 Watt p/h | 78 Watt p/h | 95 Watt p/h |
| Lighting | 1000 Lux LED | 1000 Lux LED | 1000 Lux LED | 1000 Lux LED |
| Sound pressure level | 48 d | 48 dB(A) | 48 dB(A) | 48 dB(A) |
| Ergonomic legroom | Yes | Yes | Yes | Yes |
| Ergonomic seat position | Yes | Yes | Yes | Yes |
| Particle classification NEN-EN-ISO 14644-1 | ISO 7 | ISO 7 | ISO 7 | ISO 7 |
| Air velocity | 0.2 m/s | 0.2 m/s | 0.2 m/s | 0.2 m/s |
| Warranty | 1 year | 1 year | 1 year | 1 year |
| Customer specific requirements | At request | At request | At request | At request |
| Half-round stainless steel worktop (without flow guidance) | Optional | Optional | Optional | Optional |
| Stainless steel HEPA protection grill (removable) | Optional | Optional | Optional | Optional |
| Fixed-height stand (ergonomic) | Optional sitting 760 mm standing 940 mm |
Optional sitting 760 mm standing 940 mm |
Optional sitting 760 mm standing 940 mm |
Optional sitting 760 mm standing 940 mm |
| Electric height-adjustable frame | Optional min. 640/max. 1290 mm |
Optional min. 640/max. 1290 mm |
Optional min. 640/max. 1290 mm |
Optional min. 640/max. 1290 mm |
| Flow guidance bar | Standard | Standard | Standard | Standard |
| Flow sensor | Optional | Optional | Optional | Optional |
| UV-C module | Optional | Optional | Optional | Optional |
| Single steriframe -incl. PTFE ring in worktop | Optional | Optional | Optional | Optional |
| Side panel pass-throughs | Standard in each panel 1 pc. |
Standard in each panel 1 pc. |
Standard in each panel 1 pc. |
Standard in each panel 1 pc. |
| Visual alarm | Optional | Optional | Optional | Optional |
| Double 230V socket | Optional | Optional | Optional | Optional |
| Filter grade | ||||
| Pre-filter NEN-EN-ISO 16890 | 90% M5 Coarse | 90% M5 Coarse | 90% M5 Coarse | 90% M5 Coarse |
| Absolute filter | H14 | H14 | H14 | H14 |
