LA-Carousel media dispenser
SKU
EQM85045
- Fully automated media dispenser
- Automates tedious manual tasks to drastically lower operator workload, daily batch bottlenecks, and human handling risks
- 600-720 cups per hour
- Designed exclusively for connection to the media preparator
- Flexible modular add-ons
Sign in or request an account to see prices.
Product description

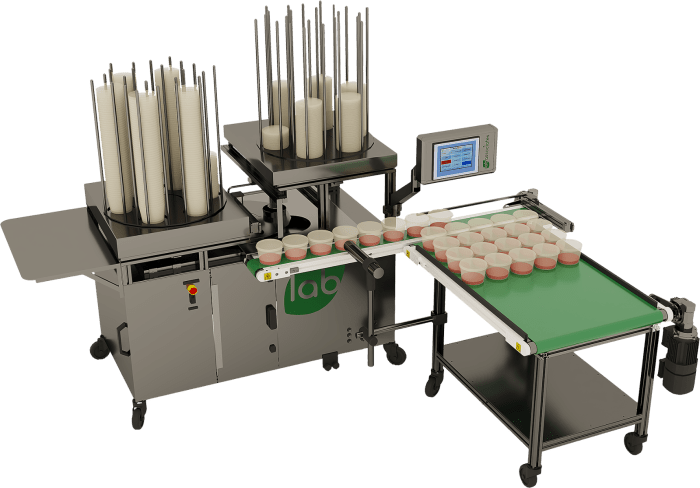

The LA-Carousel media dispenser is a compact, fully automated system designed to handle the entire dispensing and closing process of your culture vessels with just a single command. It is the perfect fit for small to medium sized production facilities looking to eliminate tedious manual labor, maximize production, and minimize operator handling risks without taking up too much laboratory floor space.
Automated processing & efficiency
- High throughput: Processes each vessel in 5–6 seconds, delivering a high output of 600 to 720 cups per hour.
- Single-command operation: Handles the entire filling and closing process automatically after one simple start command.
- Constant production pace: Provides a steady and reliable speed to streamline your daily batches.
- Labor reduction: Automates the most repetitive parts of your production line to drastically lower manual workload and human error.
Contamination control & cleanliness
- Walk-in laminar airflow cabinet: The entire filling and closing area is housed inside a laminar airflow environment to keep the workspace clean and contamination-free.
System connectivity
- Media preparator connection: Designed to connect directly to your Lab Associates media preparator for a seamless, automated and fluid transfer.
- No autoclave compatibility: Please note this system is built to link with LA media preparators and cannot be connected to an autoclave/mediaclave.
Modular extensions & add-ons
- Robot tray picking module: Can be extended with a robotic module that automatically places trays of filled cups directly into trolley racks.
- Inline printer: Prints batch information directly on the side of the vessels after filling, with optional alcohol-resistant ink.
- Side table: Integrated additional working space on the left side of the dispenser for opening bags or handling materials.
- Oil-free air compressor: Available with an included buffer tank if your laboratory's current air supply needs an extension.
- Remote assistance: Features a remote VPN connection that allows for fast, direct technical service and troubleshooting.
- Height adjustment: Configured for a single cup type with adjustable settings for different heights
| LA-Carousel media dispenser | |||
| Performance | |||
| Cup width/diameter range | 65-115 mm | ||
| Cup heigth range | 45-160 mm | ||
| Production speed | 5-6 s per cup (600-720 cups/h) | ||
| Input buffer options | |||
| Infeed buffer for cups and lids | Rotating table for 6 stacks instead of single stack | ||
| A. Standard stack | 300 cups (for LA-ROUND WAVIN 2/80) | ||
| B. Extended stack | 600 cups (for LA-ROUND WAVIN 2/80) | ||
| Changeover to multiple cup types | Configured for 1 cup model and diameter with variable height | ||
| Outfeed buffer options | |||
| A. Outfeed table for filled cups | Outfeed table to buffer filled cups (variable size) | ||
| B. Trolley & trays module | Fill empty trolleys with trays of filled cups | ||
| Tray sizes | 400 x 600 mm standard (customized to stackable rectangular trays of any material or size) | ||
| Dimensions including flow cabinet* |
|||
| W x D x H with buffer table | 2500 x 2100 x 2500 mm | ||
| W x D x H with trolley & trays module | 3500 x 2300 x 2500 mm | ||
| Technical requirements | |||
| Power | 110/230VAC, 16A (fused), 50/60Hz | ||
| Compressed air | Min 7 bar dry oil-free. Consumption with buffer table 180 liters/min at 8 bar, with robot tray picking module 430 l/min | ||
* At least 5 cm of space on top of Laminar air flow for air circulation
| Extra options for LA-Carousel media dispenser | ||
| Precise dispensing | Accurate control of dispensed weight with >99% accuracy at 100 ml | |
| ‘Walk-in’ cross flow cabinet | For sterile dispensing the ‘walk-in’ Cross Flow Ecoplant cabinet is recommended that will be sized to fit | |
| Inline printer | Printing batch information on side of vessels directly after filling, alcohol resistant ink is also possible | |
| Side table | Integrated additional working space at left side of dispenser e.g. for opening bags | |
| Oil-free air compressor | When current air supply needs to be extended to meet technical requirements. Buffer tank is included | |
| Remote assistance | Remote VPN connection allows fast & direct service handling | |
