LA-High-speed media dispenser
SKU
EQM85020
- Our fastest automatic media dispenser, processes 1,200-1,440 cups per hour for large-scale production
- Automates tedious manual tasks to drastically lower operator workload, daily batch bottlenecks, and human handling risks
- Designed exclusively for connection to the media preparator
- Flexible modular add-ons
Sign in or request an account to see prices.
Product description

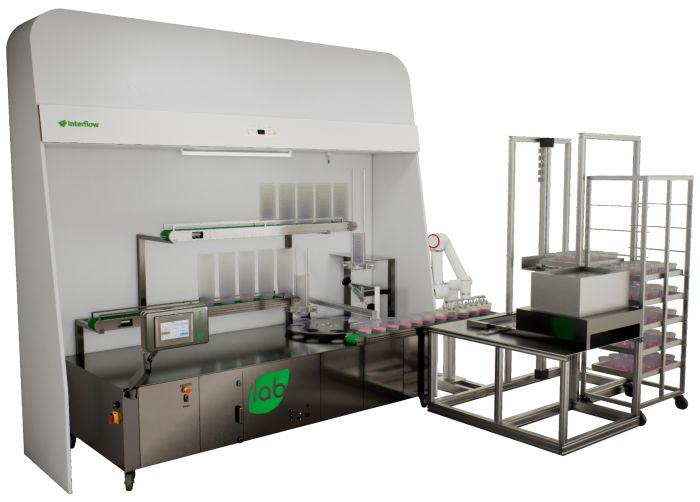

The LA-High-speed media dispenser is the fastest automatic media dispenser in our range. With just one push of a button, a complete sterilized batch is fully automatically dispensed into culture vessels and closed by the machine. It is simple to operate and eliminates a significant amount of manual handling, making it the ideal system for large-scale production facilities.
Automated processing & efficiency
- Maximum throughput: Processes each vessel in just 2.5–3 seconds, delivering a massive output of 1,200 to 1,440 cups per hour
- Single-button operation: Dispenses and caps an entire media batch automatically with one simple command
- Constant production pace: Provides a steady and reliable speed to streamline your daily batches
- Industrial capacity: Specifically engineered to meet the heavy demands of high-volume plant tissue culture facilities
- Labor reduction: Automates the most repetitive parts of your production line to drastically lower manual workload and human error
Contamination control & cleanliness
- Walk-in laminar airflow cabinet: The entire filling and closing area is housed inside a laminar airflow environment to keep the workspace clean and contamination-free
System connectivity
- Media preparator connection: Designed to connect directly to your Lab Associates media preparator for a seamless, automated and fluid transfer
- No autoclave compatibility: Please note this system is built to link with LA media preparators and cannot be connected to an autoclave/mediaclave
Modular extensions & add-ons
- Robot tray picking module: Can be extended with a robotic module that automatically places trays of filled cups directly into trolley racks
- Inline printer: Prints batch information directly on the side of the vessels after filling, with optional alcohol-resistant ink
- Side table: Integrated additional working space on the left side of the dispenser for opening bags or handling materials
- Oil-free air compressor: Available with an included buffer tank if your laboratory's current air supply needs an extension
- Remote assistance: Features a remote VPN connection that allows for fast, direct technical service and troubleshooting
| LA-High-speed media dispenser | |
| Performance | |
| Cup width/diameter range | 65-210 mm |
| Cup heigth range | 45-200 mm |
| Production speed | 2.5-3 s per cup (1200-1440 cups/h) |
| Input buffer options | |
| Infeed buffer for cups and lids | Straight conveyor belt for multiple stacks (variable length) |
| A. Standard stack | 550 cups/lids (for LA-ROUND WAVIN 2/80) |
| B. Extended stack | Basically unlimited depending on available space |
| Changeover to multiple cup types | Additional exchangable parts required for fast changeover |
| Outfeed buffer options | |
| A. Outfeed table for filled cups | Outfeed table to buffer filled cups (variable size) |
| B. Trolley & trays module | Fill empty trolleys with trays of filled cups |
| Tray sizes | 400 x 600 mm standard (customized to stackable rectangular trays of any material or size) |
| Dimensions including flow cabinet* | |
| W x D x H with buffer table | 3300 x 2500 x 2500 mm |
| W x D x H with trolley & trays module | 4300 x 2600 x 2500 mm |
| Technical requirements | |
| Power | 110/230VAC, 16A (fused), 50/60Hz |
| Compressed air | Min 7 bar dry oil-free. Consumption with buffer table 180 liters/min at 8 bar, with robot tray picking module 430 l/min |
* At least 5cm of space on top of LAF for air circulation
| Extra options for LA-High-speed media dispenser | ||
| Precise dispensing | Accurate control of dispensed weight with >99% accuracy at 100 ml | |
| ‘Walk-in’ cross flow cabinet | For sterile dispensing the ‘walk-in’ Cross Flow Ecoplant cabinet is recommended that will be sized to fit | |
| Inline printer | Printing batch information on side of vessels directly after filling, alcohol resistant ink is also possible | |
| Side table | Integrated additional working space at left side of dispenser e.g. for opening bags | |
| Oil-free air compressor | When current air supply needs to be extended to meet technical requirements. Buffer tank is included | |
| Remote assistance | Remote VPN connection allows fast & direct service handling | |
